2016-09-06 09:13 瀏覽：-【東莞】齒輪油泵生產廠家,請認準遠東泵業官網

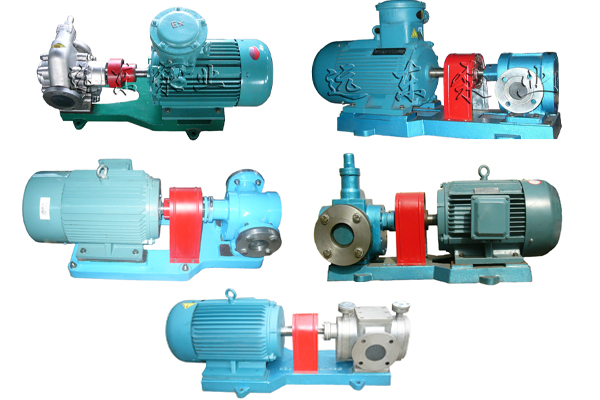

如今網絡發展迅速,更多的客戶會選擇在網上采購齒輪油泵,但是客戶還是會擔心齒輪油泵的質量,價格,售后服務等問題,想采購質量好,服務好,價格合理的齒輪油泵看看遠東泵業,這里有KCB系列齒輪油泵,2CY系列齒輪油泵,YCB系列圓弧齒輪油泵齒輪油泵,2CG硬齒面齒輪油泵,RCB系列（保溫）齒輪油泵,質量可靠,價格公道,服務貼心,讓您滿載而歸放心使用！
遠東齒輪油泵性能參數表：
KCB齒輪油泵選型參數表：
型 號 | 流量 | 壓力 | 真空度 | 進出口徑 | 進出口距離 | 配用電機 | 功率 |
KCB18.3 | 1.1 | 1.45MPa | 5 | G3/4" | 200 | Y90L-4 | 1.5KW |
KCB33.3 | 2 | 1.45MPa | 5 | G3/4" | 200 | Y100L1-4 | 2.2KW |
KCB55 | 3.3 | 0.33MPa | 5 | G1" | 200 | Y90L-4 | 1.5KW |
KCB83.3 | 5 | 0.33MPa | 5 | G11/2" | 200 | Y100L2-4 | 2.2KW |
KCB133 | 8 | 0.33MPa | 5 | G2" | 260 | Y132S-6 | 3KW |
2CY8/6 | 8 | 0.6MPa | 5 | G2" | 260 | Y132M1-6 | 4KW |
2CY8/10 | 8 | 1.0MPa | 5 | G2" | 260 | Y132M2-6 | 5.5KW |
2CY12/1.3 | 12 | 0.13MPa | 5 | G2" | 260 | Y112M-4 | 4KW |
KCB200 | 12 | 0.33MPa | 5 | G2" | 260 | Y132S-4 | 5.5KW |
2CY12/6 | 12 | 0.6MPa | 5 | G2" | 260 | Y132S-4 | 5.5KW |
2CY12/10 | 12 | 1.0MPa | 5 | G2" | 260 | Y132M-4 | 7.5KW |
KCB300 | 18 | 0.36MPa | 5 | 70 | 234 | Y132M2-6 | 5.5KW |
2CY18/6 | 18 | 0.6MPa | 5 | 70 | 234 | Y160M-6 | 7.5KW |
KCB483 | 29 | 0.36MPa | 5 | 70 | 234 | Y132M-4 | 7.5KW |
2CY29/6 | 29 | 0.6MPa | 5 | 70 | 234 | Y160M-4 | 11KW |
KCB633 | 38 | 0.28MPa | 5 | 100 | 280 | Y160L-6 | 11KW |
2CY38/6 | 38 | 0.6MPa | 5 | 100 | 280 | Y200L2-6 | 22KW |
KCB960 | 60 | 0.3MPa | 5 | 100 | 280 | Y180L-4 | 22KW |
2CY100/3 | 100 | 0.3MPa | 5 | 150 | 400 | Y250M-8 | 30KW |
2CY100/6 | 100 | 0.6MPa | 5 | 150 | 400 | Y315S-8 | 55KW |
2CY120/3 | 120 | 0.3MPa | 5 | 150 | 400 | Y250M-8 | 30KW |
2CY120/6 | 120 | 0.6MPa | 5 | 150 | 400 | Y315S-8 | 55KW |
2CY150/3 | 150 | 0.3MPa | 5 | 150 | 400 | Y280S-8 | 37KW |
2CY150/6 | 150 | 0.6MPa | 5 | 150 | 400 | Y315M1-8 | 75KW |
2CY齒輪油泵選型參數表：
型號 Model | 流量 | 排出壓力 Mpa | 吸入真空高度m | 進出口口徑mm | 轉速 | 電機功率Power kw | |
m3/h | L/min | ||||||
2CY-0.6 | 0.6 | 10 | 0.6/2.5 | 3 | G3/4" | 1400 | 1.1/1.5 |
2CY-1.08 | 1.08 | 18 | 0.6/2.5 | 3 | G3/4" | 1400 | 1.5 |
2CY-2.1 | 2.1 | 35 | 0.6/2.5 | 3 | C1" | 1420 | 1.5/3 |
2CY-3 | 3 | 50 | 0.6/2.5 | 3 | C1" | 1420/1440 | 2.2/4 |
2CY-4.2 | 4.2 | 70 | 0.6/2.5 | 3 | G11/4" | 1440 | 4/5.5 |
2CY-7.5 | 7.5 | 125 | 0.6/2.5 | 3 | G11/2" | 1440 | 5.5/7.5 |
2CY-10 | 10 | 167 | 0.6/2.5 | 3 | G11/2" | 1440/1460 | 7.5/11 |
2CY-12 | 12 | 200 | 0.6/2.5 | 3 | G2" | 1460 | 7.5/11 |
2CY-15 | 15 | 250 | 0.6/2.5 | 3 | G2.5" | 1440/1460 | 7.5/15 |
2CY-18 | 18 | 300 | 0.6/2.5 | 3 | G2.5" | 1440/1470 | 7.5/18.5 |
YCB圓弧齒輪油泵選型參數表：
| 型號 | 流量 Q | 轉速 n r/min | 排出壓力 p Mpa | 必需汽 蝕余量 r m | 效率 η % | 電動機 | ||
| m3/h | 頻率 Hz | 功率KW | 型號 | |||||
| YCB0.6-0.6 | 0.6 | 910 | 0.6 | 5.5 | 32 | 50 | 0.75 | Y90S-6 |
| 1.0 | 1390 | 50 | 0.75 | Y80L2-4 | ||||
| 0.7 | 1130 | 60 | 0.75 | Y90S-6 | ||||
| 1.2 | 1710 | 60 | 0.75 | Y80L2-4 | ||||
| YCB0.6-1.6 | 0.6 | 910 | 1.6 | 7.0 | 70 | 50 | 1.1 | Y90L-6 |
| 1.0 | 1400 | 50 | 1.5 | Y90L-4 | ||||
| 0.7 | 1130 | 60 | 1.1 | Y90L-6 | ||||
| 1.2 | 1710 | 60 | 1.1 | Y90S-4 | ||||
| YCB1.6-0.6 | 1.6 | 910 | 0.6 | 5.5 | 42 | 50 | 0.75 | Y90S-6 |
| 2.5 | 1400 | 50 | 1.1 | Y90S-4 | ||||
| 1.9 | 1130 | 60 | 1.1 | Y90L-6 | ||||
| 3.0 | 1710 | 60 | 1.5 | Y90L-4 | ||||
| YCB1.6-1.6 | 1.6 | 940 | 1.6 | 7.0 | 71 | 50 | 2.2 | Y112M-6 |
| 2.5 | 1440 | 50 | 4 | Y112M-4 | ||||
| 1.9 | 1150 | 60 | 2.2 | Y112M-6 | ||||
| 3.0 | 1750 | 60 | 4 | Y112M-4 | ||||
| YCB3.3-0.6 | 3.3 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
| 5.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
| 4.0 | 1150 | 60 | 1.5 | Y100L-6 | ||||
| 6.0 | 1730 | 60 | 2.2 | Y100L1-4 | ||||
| YCB3.3-1.6 | 3.3 | 960 | 1.6 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
| 5.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
| 4.0 | 1170 | 60 | 4 | Y132M1-6 | ||||
| 6.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB4-0.6 | 4.0 | 940 | 0.6 | 5.0 | 60 | 50 | 1.5 | Y100L-6 |
| 6.0 | 1420 | 50 | 2.2 | Y100L1-4 | ||||
| 4.8 | 1150 | 60 | 2.2 | Y112M-6 | ||||
| 7.2 | 1730 | 60 | 3 | Y100L2-4 | ||||
| YCB4-1.6 | 4.0 | 960 | 1.6 | 7.0 | 72 | 50 | 5.5 | Y132M2-6 |
| 6.0 | 1440 | 50 | 7.5 | Y132M-4 | ||||
| 4.8 | 1170 | 60 | 5.5 | Y132M-6 | ||||
| 7.2 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB8-0.6 | 8.0 | 960 | 0.6 | 5.0 | 61 | 50 | 3 | Y132S-6 |
| 12.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
| 9.6 | 1170 | 60 | 4 | Y132M1-6 | ||||
| 14.4 | 1750 | 60 | 5.5 | Y132S-4 | ||||
| YCB8-1.6 | 8.0 | 970 | 1.6 | 7.0 | 75 | 50 | 11 | Y160L-6 |
| 12.0 | 1460 | 50 | 15 | Y160L-4 | ||||
| 9.6 | 1170 | 60 | 11 | Y160L-6 | ||||
| 14.4 | 1760 | 60 | 15 | Y160L-4 | ||||
| YCB10-0.6 | 10.0 | 960 | 0.6 | 5.0 | 62 | 50 | 4 | Y132M1-6 |
| 15.0 | 1440 | 50 | 5.5 | Y132S-4 | ||||
| 12.0 | 1170 | 60 | 5.5 | Y132M2-6 | ||||
| 18.0 | 1750 | 60 | 7.5 | Y132M-4 | ||||
| YCB10-1.6 | 10.0 | 970 | 1.6 | 7.0 | 76 | 50 | 11 | Y160L-6 |
| 15.0 | 1470 | 50 | 15 | Y160L-4 | ||||
| 12.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| 18.0 | 1770 | 60 | 18.5 | Y160L-4 | ||||
| YCB20-0.6 | 20.0 | 970 | 0.6 | 5.0 | 68 | 50 | 7.5 | Y160M-6 |
| 24.0 | 1170 | 60 | 7.5 | Y160M-6 | ||||
| YCB25-0.6 | 25.0 | 970 | 0.6 | 5.5 | 69 | 50 | 11 | Y160L-6 |
| 30.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| YCB30-0.6 | 30.0 | 970 | 0.6 | 5.5 | 70 | 50 | 11 | Y160L-6 |
| 36.0 | 1170 | 60 | 11 | Y160L-6 | ||||
| YCB40-0.6 | 40.0 | 970 | 0.6 | 5.5 | 72 | 50 | 15 | Y180L-6 |
| 48.0 | 1180 | 60 | 15 | Y180L-6 | ||||
| YCB50-0.6 | 50.0 | 970 | 0.6 | 5.5 | 72 | 50 | 22 | Y200L2-6 |
| 60.0 | 1180 | 60 | 22 | Y200L2-6 | ||||
2CG硬齒面齒輪油泵選型參數表：
型號 Model | 流量 Flow Capacity | 壓力 Mpa | 吸入高度 m | 口徑 | 配用電機 | ||
m 3 /h | L/min | 電機功率 kw | 型號 | ||||
2CG-1 | 1 | 16.7 | 1.0 | 5 | Φ25 | 1.5 | Y 90L -4 |
2CG-1.5 | 1.5 | 25 | 1.0 | 5 | Φ25 | 1.5/2.2 | Y 90L -4 |
2CG-2 | 2 | 33.3 | 1.0 | 5 | Φ25 | 2.2/3 | Y 100L 1-4 |
2CG-3 | 3 | 50 | 1.0 | 5 | Φ25 | 3 | Y 100L 2-4 |
2CG-5 | 5 | 83.3 | 1.0 | 5 | Φ40 | 4 | Y 112M -4 |
2CG-6 | 6 | 100 | 1.0 1.6 | 5 | Φ40 | 4 | Y 112M -4 |
2CG-7.5 | 7.5 | 125 | 1.0 | 5 | Φ50 | 5.5 | Y 132M2 -6 |
2CG-10 | 10 | 167 | 1.0 | 5 | Φ50 | 5.5/7.5 | Y132S-4 |
2CG-12 | 12 | 200 | 1.0 | 5 | Φ55 | 5.5/7.5 | Y 132M2 -6 |
2CG-15 | 15 | 250 | 1.0 | 5 | Φ55 | 7.5 /11 | Y 132M -4 |
2CG-18 | 18 | 300 | 1.0 | 5 | Φ55 | 7.5/11 | Y 132M -4 |
2CG-18 | 18 | 300 | 1.0 | 4.5 | Φ70 | 7.5 | Y 160M -6 |
2CG-29 | 29 | 483.3 | 1.0 | 4.5 | Φ70 | 11 | Y 160M -4 |
2CG-38 | 38 | 633 | 1.0 | 4 | Φ100 | 22 | Y 200L 2-6 |
2CG-58 | 58 | 960 | 1.0 | 3.5 | Φ100 | 30 | Y 200L -4 |
2CG-72 | 72 | 1200 | 0.6 | 4 | Φ150 | 37 | Y280S-8 |
2CG-96 | 96 | 1600 | 0.6 | 4 | Φ150 | 45 | Y280S-6 |
2CG-112 | 112 | 1800 | 0.6 | 2.5 | Φ200 | 55 | Y315S-8 |
2CG-150 | 150 | 2500 | 0.6 | 2.5 | Φ200 | 75 | Y315S-6 |
RCB（保溫）齒輪油泵選型參數表：
規格型號 | 流量 | 壓力 Mpa | 吸入真空高度 m | 口徑 mm | 配電機 | ||
m3/h | L/min | 功率 | 型號 | ||||
RCB-1/0.6 | 1 | 16.6 | 0.36 | 3 | 16 | 1.5 | Y 90L -4 |
RCB-1/0.8 | 1 | 16.6 | 0.8 | 3 | 16 | 1.5 | Y 90L -4 |
RCB-2/0.36 | 2 | 33.3 | 0.36 | 3 | 25 | 1.5 | Y 90L -4 |
RCB-2/0.8 | 0.8 | 2.2 | Y 100L 1-4 | ||||
RCB-3/0.36 | 3 | 50 | 0.36 | 3 | 25 | 1.5 | Y 100L -6 |
RCB-3/0.8 | 0.8 | 2.2 | Y 112M -6 | ||||
RCB-5/0.36 | 5 | 83.3 | 0.36 | 3 | 40 | 2.2 | Y 100L -4 |
RCB-5/0.8 | 0.8 | 4 | Y 112M -4 | ||||
RCB-6/0.36 | 6 | 100 | 0.36 | 3 | 40 | 2.2 | Y 132M -6 |
RCB-6/0.8 | 0.8 | 3 | 4 | Y 132M 1-6 | |||
RCB-8/0.36 | 8 | 133 | 0.36 | 3 | 50 | 4 | Y 112M -4 |
RCB-8/0.8 | 0.8 | 3 | 5.5 | Y132S-4 | |||
RCB-10/0.36 | 10 | 167 | 0.36 | 3 | 50 | 4 | Y 132M -6 |
RCB-10/0.8 | 0.8 | 3 | 5.5 | Y 132M2 -4 | |||
RCB-12/0.36 | 12 | 200 | 0.36 | 3 | 50 | 4 | Y 132M -6 |
RCB-12/0.8 | 0.8 | 3 | 5.5 | Y 132M2 -6 | |||
RCB-18/0.36 | 18 | 300 | 0.36 | 3 | 70 | 5.5 | Y 132M2 -6 |
RCB-18/0.8 | 0.8 | 3 | 7.5 | Y 160M -6 | |||
RCB-29/0.36 | 29 | 483.3 | 0.36 | 3 | 70 | 7.5 | Y 132M -4 |
RCB-29/0.8 | 0.8 | 3 | 11 | Y 160M -4 | |||
RCB-32/0.36 | 32 | 534 | 0.36 | 3 | 100 | 11 | Y 160L -6 |
RCB-32/0.8 | 0.8 | 3 | 15 | Y 180L -6 | |||
RCB-38/0.28 | 38 | 633 | 0.36 | 3 | 100 | 11 | Y 160L -6 |
RCB-38/0.36 | 0.8 | 3 | 15 | Y 180L -6 | |||
RCB-58/0.28 | 58 | 960 | 0.36 | 3 | 100 | 18.5 | Y 180M -4 |
RCB-58/0.36 | 0.8 | 3 | 22 | Y 180L -4 | |||
RCB-72/0.28 | 72 | 1200 | 0.28 | 3 | 150 | 37 | Y250S-8 |
RCB-96/0.28 | 96 | 1600 | 0.28 | 3 | 150 | 45 | Y280S-6 |
遠東齒輪油泵您值得擁有！
遠東齒輪油泵耐高溫250度,材質為鑄鐵和全鑄鋼材質,溫度高能達到350度,還可保溫,所以現在市場銷售的很好,,齒輪油泵主要有齒輪、軸、泵體、閥、軸端密封（特殊要求,可選用磁力驅動,零泄露結構）所組成。齒輪經高溫熱處理有較高的硬度和強度,與軸一同安裝在可更換的軸套內運轉.齒輪油泵內全部零件的潤滑均在泵工作時利用輸出介質而自動達到.
訂貨須知：
齒輪式輸油泵詳細參數表中參數為250℃,5-1500粘度條件的數值。
齒輪式輸油泵有配帶管螺紋口的腰形法蘭,有的不配帶法蘭,需用戶自行加工。
齒輪式輸油泵可采用不銹鋼輸送一般腐蝕性的介質，訂貨時請標注。
